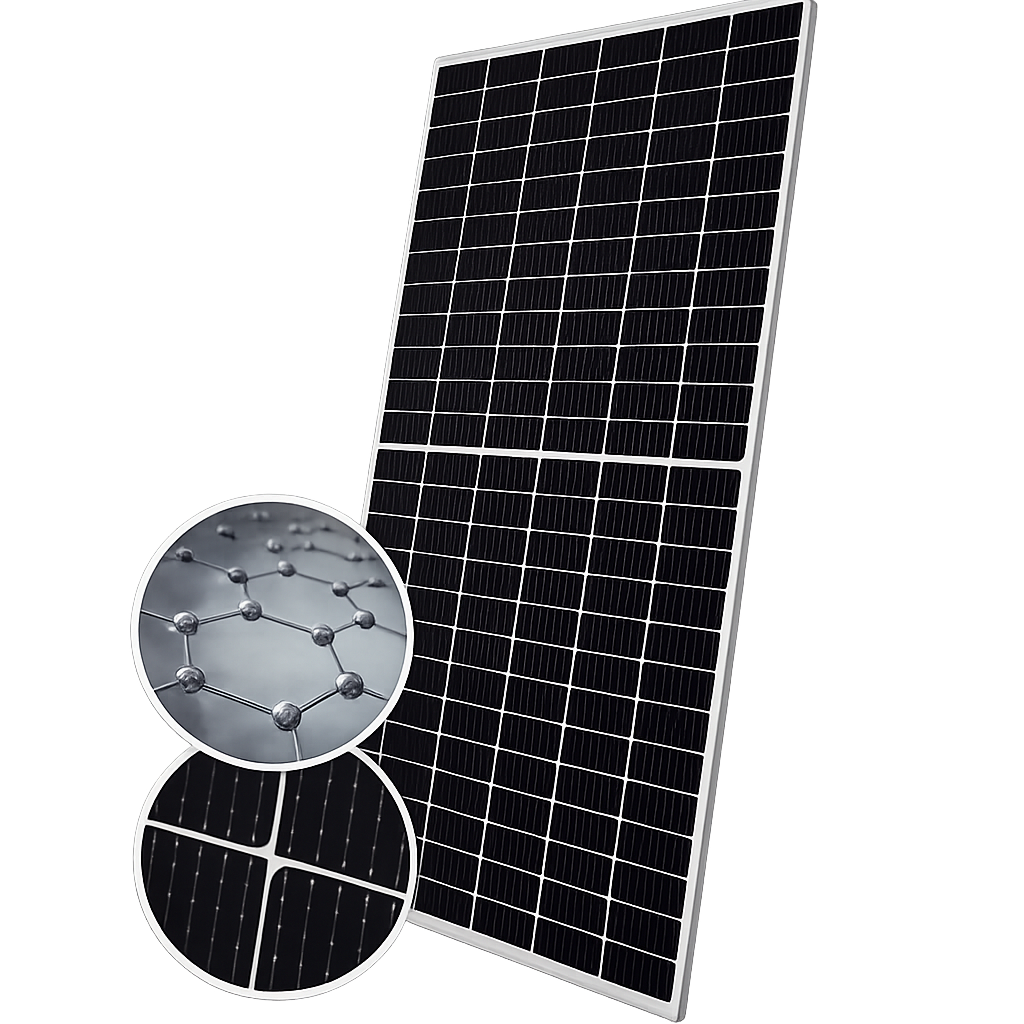

Power Panel

Graphene solar panels capture energy from both visible and infrared light (300–1400nm), while conventional panels only use visible light (300–700nm). That means more power in low light, overcast, and winter conditions.
Get a Quote

Mission Assurance

Key Features

Certifications: IEC 61215

Spectrum

Captures Visible & IR

Output

+33% vs Same-Size Panels

Microcracks

No Effect on Power

Low Light

Superior Performance

Power Density

335 W/m²

Degradation

≤0.2% per Year

Flexible

Bends Up to 20%

Warranty

10 Years

Technical Specifications

700W Model Power Panel

Physical Specifications

  • Dimensions: L: 89.7 in × W: 44.65 in × H:1.2 in
  • Weight: 80 lbs (36 kg)
  • Frame: Anodized aluminum alloy
  • Front Cover: 0.13 in tempered glass
  • Cable Length: Portrait: 12 in
  • Cable Cross-Section: 0.006 in² (MC4)

Thermal Parameters

  • Temperature Coefficient of Pmax: –0.29 % / K
  • Temperature Coefficient of Voc: –0.25 % / K
  • Temperature Coefficient of Isc: 0.045 % / K
  • Nominal Operating Cell Temp: 108 ± 36 °F

Certification & Warranty

  • Certificate: IEC 61215
  • PID & LID Resistance: 100 %
  • Performance Guarantee: 30 years
  • Degradation Guarantee: ≤ 0.2 % per year
  • Fire Resistance Class: Type 2

Electrical Specifications

  • Power (Pmax): 560 + W
  • Efficiency: 22.5 %
  • MPP Voltage (Vmpp): 45V (STC), 42V (NOCT)
  • MPP Current (Impp): 13A (STC), 11A (NOCT)
  • Open-Circuit Voltage (Voc): 52.6V (STC), 50V (NOCT)
  • Short-Circuit Current (Isc): 14A (STC), 11A (NOCT)

System

  • Cell Type: Mono PERC 7 in × 3 in
  • Number of Cells: 144 (6 × 24)
  • Junction Box: IP68, 3 diodes
  • Connector: Standby Mode: 60 W, Idle Mode: 520 W

Technical Specifications

435W Model Power Panel

Physical Specifications

  • Dimensions: L: 67.8 in × W: 44.65 in × H: 1.18 in
  • Weight: 46.3 lbs (21 kg)
  • Frame: Anodized aluminum alloy
  • Front Cover: 0.13 in tempered glass with anti-reflective coating (ARC)
  • Cable Length: Vertical: 11.8 in, Horizontal: 47.2 in
  • Cable Cross-Section: 4 mm² (MC4 or MC4 compatible)

Thermal Parameters

  • Temperature Coefficient of Pmax: –0.2775 % / K
  • Temperature Coefficient of Voc: –0.2375 % / K
  • Temperature Coefficient of Isc: 0.04725 % / K
  • Nominal Operating Cell Temperature: 109 ± 36 °F

Certifications & Warranty

  • Certificate: IEC 61215
  • PID & LID Resistance: 100 %
  • Performance Guarantee: 30 years
  • Degradation Guarantee: ≤ 0.2 % per year
  • Fire Resistance Class: Type 2

Electrical Specifications

  • Power (Pmax): 435 + W
  • Efficiency: 23.54 %
  • MPP Voltage (Vmpp): 32.20 V
  • MPP Current (Impp): 13.36 A
  • Open-Circuit Voltage (Voc): 38.40 V
  • Short-Circuit Current (Isc): 14.06 A

System

  • Cell Type: Monocrystalline N-type 7.17 in × 3.58 in
  • Number of Cells: 108 (6 × 18)
  • Junction Box: IP68, 3 diodes
  • Connector: MC4 or MC4 compatible
