Power Play

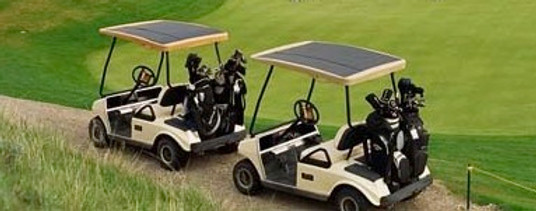

Combines a graphene solar panel roof with a supercapacitor under the seat so your golf cart never needs to be plugged in or have its battery replaced. With fast charging, 100% usable capacity, and no lithium-ion safety risks, PowerPlay delivers maintenance-free performance and true energy independence.

Get a Quote

Mission Assurance

Key Features

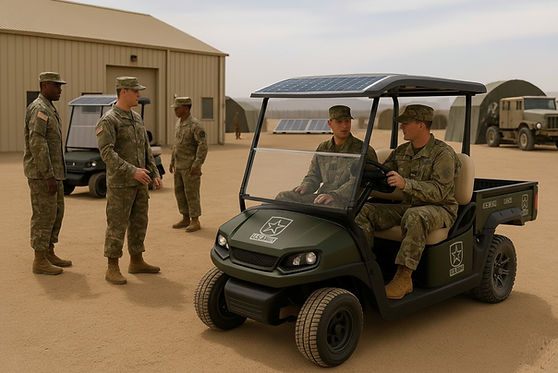

Built for the Battlefield – Ready for the Back 9

Power

700 or 1000 Wp Solar

Batteries

2.1, 4.2, 8.4 kWh

Upkeep

No Maintenance

Charging

Fast Plus Solar

Cost

100% ROI in 3-6 Years

Efficiency

91% Round-Trip

Safe

No Lithium / No fire

Flexible

Solar & Battery Options

Lifespan

Safe to fly on aircraft

Warranty

10 Years

Technical Specifications

3.2 kWh Kit (Gen 10)

Battery & Module Configuration

  • Series Capacitors: 14 (all models)
  • Parallel Capacitors: 2
  • Battery Banks: 1
  • Dimensions: L:11 in × W:9 in × H:6 in

Electrical Specifications

  • Rated Voltage: 48 V
  • Max Surge Voltage: 61.8 V
  • Max Continuous Voltage: 58.8 V
  • Min Voltage: 42 V
  • Nominal Current: 40 A
  • Continuous Current: 80 A
  • Peak Current (unlimited): 240 A
  • Maximum Charging Current: 225 A
  • Maximum Inter-Cell Balance Discharge Current: 40 A
  • Internal Resistance: 1.5 mΩ

Energy Storage & Performance

  • Nominal Energy Rating: 3.2 kVAh
  • Estimated Energy Storage (Wh): 3.2 kWh
  • Estimated Amp Hours (Ah): 63.49 Ah
  • Cycle Life: 20,000 cycles

Temperature Range

  • Operating Temperature Range: –4 to 140°F
  • Storage Temperature Range: –4 to 131°F

System

  • Peak Efficiency: >95%
  • Standby to Idle Mode: 3 seconds
  • Idle to Full Power: 12 milliseconds
  • Maximum Altitude: 12,000 ft (3658 m)
  • Ingress Protection: IP 65
  • Protective Class: I

Technical Specifications

4.2 kWh Kit (Gen 9)

Battery & Module Configuration

  • Series Capacitors: 14
  • Parallel Capacitors: 4
  • Battery Banks: 1
  • Dimensions: L:20 in × W:9 in × H:6 in

Electrical Specifications

  • Rated Voltage: 48 V
  • Max Surge Voltage: 61.8 V
  • Max Continuous Voltage: 58.8 V
  • Min Voltage: 42 V
  • Nominal Current: 80 A
  • Continuous Current: 160 A
  • Peak Current (unlimited): 240 A
  • Maximum Charging Current: 225 A
  • Maximum Inter-Cell Balance Discharge Current: 40 A
  • Internal Resistance: 1.5 mΩ

Energy Storage & Performance

  • Nominal Energy Rating: 4.2 kVAh
  • Estimated Energy Storage (Wh): 4.2 kWh
  • Estimated Amp Hours (Ah): 81.08 Ah
  • Cycle Life: 20,000 cycles

Temperature Range

  • Operating Temperature Range: –4 to 140°F
  • Storage Temperature Range: –4 to 131°F

System

  • Peak Efficiency: >95%
  • Standby to Idle Mode: 3 seconds
  • Idle to Full Power: 12 milliseconds
  • Maximum Altitude: 12,000 ft (3658 m)
  • Ingress Protection: IP 65
  • Protective Class: I

Technical Specifications

6.4 kWh Kit (Gen 10)

Battery & Module Configuration

  • Series Capacitors: 14
  • Parallel Capacitors: 4
  • Battery Banks: 2
  • Dimensions: L:22 in × W:10 in × H:12 in

Electrical Specifications

  • Rated Voltage: 48 V
  • Max Surge Voltage: 61.8 V
  • Max Continuous Voltage: 58.8 V
  • Min Voltage: 42 V
  • Nominal Current: 109 A
  • Continuous Current: 219 A
  • Peak Current (unlimited): 328 A
  • Maximum Charging Current: 225 A
  • Maximum Inter-Cell Balance Discharge Current: 40 A
  • Internal Resistance: 1.5 mΩ

Energy Storage & Performance

  • Nominal Energy Rating: 6.4 kVAh
  • Estimated Energy Storage (Wh): 6.4 kWh
  • Estimated Amp Hours (Ah):109.25 Ah
  • Cycle Life: 20,000 cycles

Temperature Range

  • Operating Temperature Range: –4 to 140°F
  • Storage Temperature Range: –4 to 131°F )

System

  • Peak Efficiency: >95%
  • Standby to Idle Mode: 3 seconds
  • Idle to Full Power: 12 milliseconds
  • Maximum Altitude: 12,000 ft (3658 m)
  • Ingress Protection: IP 65
  • Protective Class: I
